ConnectCNC G-code file transfer and DNC software |
Parameter |
Value |
Baud rate | 9600 |
Parity | Even |
Data bits | 7 |
Stop bits | 1 |
To set the CNC up for drip feed: Set ConnectCNC as follows:

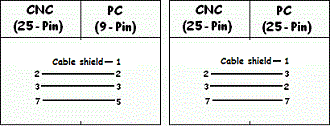

Cable Pin Out
------ drip feed not available on this control -------
Name
Milltronics VM-20
Baudrate
9600
Data bits
7
Stop bits
1
Parity
Even
Flow control
Xon/Xoff
Xon Char.
17
Xoff char.
19
Port
as available
Header String
Trailer String
Recognize custom EOL
Replace
Check "%" character
Checked. This control requires a "%" at the beginning and end of your programs.
Skip empty lines
user's choice
Skip line numbers
user's choice
Skip non printable bytes
user's choice
Skip comments
check "(...)" if required
Default folder
Folder in which you store this machine's programs
Start transfer delay
user's choice
Header String
Trailer String
Recognize custom EOL
Replace (checked)
13,10
Check "%" character
Checked. This control requires a "%" at the beginning and end of your programs.
Skip empty lines
user's choice
Skip line numbers
user's choice
Skip non printable bytes
user's choice
Skip comments
check "(...)" if required
Default folder
Folder in which you store this machine's programs
Start transfer delay
user's choice
Sometimes file transfer will not run, even if all the settings are correct. The following procedure may correct the problem, especially if you're running the machine via DNC: Check to make sure your FIFO buffers disabled on the PC. You access the settings in Control Panel -> System -> Hardware tab -> Device Manager. Find your COM ports and double click the one you are communicating with. Click the tab for Port Settings then Advanced. Uncheck the FIFO buffers. Having this turned on can cause problems with RS232 transfer, especially DNC. | |
Once you have ConnectCNC and your CNC machines communicating, we strongly suggest you take the following precautions: - Download some programs, the longer the better, from your CNC to the pc. Save them under a temporary filename so you don't overwrite the original files. Examine them for errors such as dropped or changed text. Do this for the first few programs that you use. | |
