ConnectCNC G-code file transfer and DNC software |
Parameter
|
Value
|
Baudrate | 9600 |
Stop bits | 1 |
Data bits | 7 |
Parity | even |
To set the CNC up for drip feed: Set ConnectCNC as follows:

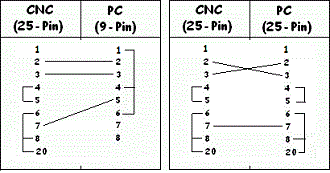

Cable Pin Out
------ drip feed not available on this control -------
Name
Nat 750
Baudrate
9600(or to match CNC setting)
Data bits
7
Stop bits
1
Parity
Even
Flow control
Hardware
Xon Char.
17
Xoff char.
19
Port
as available
Header String Trailer String Recognize custom EOL
Replace
Check "%" character Checked. This control requires a "%" at the beginning and end of your programs. Skip empty lines user's choice Skip line numbers user's choice Skip non printable bytes user's choice Skip comments check "(...)" if required
Default folder Folder in which you store this machine's programs Start transfer delay user's choice
Header String
Trailer String
Recognize custom EOL
Replace (checked) 13,10
Check "%" character Checked. This control requires a "%" at the beginning and end of your programs. Skip empty lines user's choice Skip line numbers user's choice Skip non printable bytes user's choice Skip comments
check "(...)" if required
Default folder Folder in which you store this machine's programs Start transfer delay user's choice
Sometimes file transfer will not run, even if all the settings are correct. The following procedure may correct the problem, especially if you're running the machine via DNC: Check to make sure your FIFO buffers disabled on the PC. You access the settings in Control Panel -> System -> Hardware tab -> Device Manager. Find your COM ports and double click the one you are communicating with. Click the tab for Port Settings then Advanced. Uncheck the FIFO buffers. Having this turned on can cause problems with RS232 transfer, especially DNC. | |
Once you have ConnectCNC and your CNC machines communicating, we strongly suggest you take the following precautions: - Download some programs, the longer the better, from your CNC to the pc. Save them under a temporary filename so you don't overwrite the original files. Examine them for errors such as dropped or changed text. Do this for the first few programs that you use. | |
These settings have been collected from users of
our software and machine tool distributers. We have listed them to
help users of ConnectCNC to communicate between their computers and
CNC controls. |
