DNC / file transfer settings for Cincinnati Acramatic 950


Set the following parameters on the machine:

Parameter
Value
Baud rate 9600
Parity None
Data bits 8
Stop Bits 1

Some of the above settings seem to conflict with those in ConnectCNC;
but the control counts the even parity bit as a data bit.


Set ConnectCNC as follows:

Common Settings
Name Acramatic 950
Baudrate 9600
Data bits 7
Stop bits 1
Parity Even
Flow control Xon/Xoff
Xon Char. 17
Xoff char. 19
Port as available
Send Settings
Header String 0
Trailer String 0
End of Line Sequence
Recognize custom EOL
Replace

Check "%" character Checked. This control requires a "%" at the beginning and end of your programs.
Skip empty lines user's choice
Skip line numbers user's choice
Skip non printable bytes user's choice
Skip comments check "(...)" if required
Default folder Folder in which you store this machine's programs
Start transfer delay user's choice
Receive Settings
Header String 0
Trailer String 10
End of Line Sequence
Recognize custom EOL
Replace (checked) 13,10

Check "%" character Checked. This control requires a "%" at the beginning and end of your programs.
Skip empty lines user's choice
Skip line numbers user's choice
Skip non printable bytes user's choice
Skip comments check "(...)" if required
Default folder Folder in which you store this machine's programs
Start transfer delay user's choice

Cable Pin Out

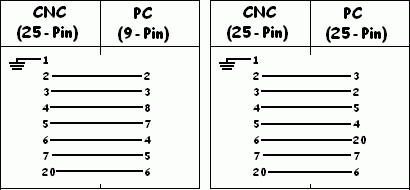

Cable pinout for connecting Cincinnati Acramatic 950

Sometimes file transfer will not run, even if all the settings are correct.
The following procedure may correct the problem, especially if you�re running the machine via DNC:
Check to make sure your FIFO buffers disabled on the PC.
You access the settings in Control Panel -> System -> Hardware tab -> Device Manager.
Find your COM ports and double click the one you're communicating with.
Click the tab for Port Settings then Advanced. Uncheck the FIFO buffers.
Having this turned on can cause problems with RS232 transfer, especially DNC.

Once you have ConnectCNC and your CNC machines communicating, we strongly suggest you take the following precautions:
- Download some programs, the longer the better, from your CNC to the pc. Save them under a temporary filename so you don't overwrite the original files. Examine them for errors such as dropped or changed text.
Do this for the first few programs that you use.

These settings have been collected from users of our software and machine tool distributers. We have listed them to help users of ConnectCNC to communicate between their computers and CNC controls.
Since we have no control over the many variables involved, including such things as cable conditions, modifications to machines, condition of computer hardware, etc., we take no responsibility for any damage caused to programs or machines through the use of this software.
